Rehearsal spaces for symphony orchestras—Data collection

Introduction

We request data that could help us in testing suggested recommendations, e.g. recommended combinations of Volume and Reverb Times in rehearsal rooms for un-reinforced music.



The diagram below is an example from NS8178, being the work draft for a new ISO-standard for rehearsal rooms.



Do you have any such data and would you be willing to share it?



If so, do the following:



· Copy the table below

· Paste it into a new email

· Fill in data in the empty cells

· Send the email to msk@brekkestrand.no



If you prefer, you can paste the table into a blank excel sheet, fill in data and send it to the email address above.



All rows received will be compiled in a single table below.



In rooms with variable acoustics it is especially valuable to know the RT-range and which RT they prefer. Please use comment column.



The more data, the better. The table may of course be extended with extra rows on demand.



If a room has been used and evaluated in different versions, i.e. with different combinations of RT, N, or even V, please use one row for each version.

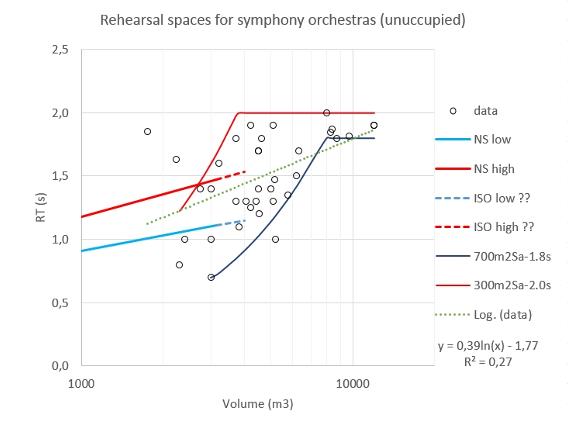

As much as possible of the collected information will be included in the base for a paper to ISRA 2019. Each row, i.e. each pair of RT-V will represent one point plotted in a T-V diagram like the one below.



If you think of someone else who should receive this invitation, please return name and email address.



Thank you for your kind cooperation.

* symphony orchestra, here an orchestra consisting of at least strings, woodwind, brass and percussion groups, playing classical music, opera- and ballet-orchestras included.

** If the ID cannot be published please notify in Comment. If you must keep ID strictly anonymous, you could write YourSurname-#1, YourSurname-#2, etc. sufficient to make data traceable for peers in scientific manner.

*** Bass Ratio is (RT125+RT250)/(RT500+RT1000)



Rehearsal room ID**

Volume,

V (m3)

RT,
500-1000Hz average,

Tm(s)

Bass ratio***

BR (1)

Orchestra ID**

Number of musicians in symphony orchestra*, N [range]

Are musicians and conductor satisfied, dissatisfied, or what?

Comment



































































Table and T-V plot updated 12-07-2019



#

Rehearsal room ID**

Volume, V(m3)

RT, 500-1000Hz average, Tm(s)

Bass ratio*** BR (1)

Orchestra ID**

Number of musicians in symphony orchestra*, N [range]

Musicians and conductor satisfied, dissatisfied, or what?

1

Oslo Opera

5200

1,00



Opera Orchestra



yes

2

Danish Radio

6300

1,70



DR symph. Orch.



yes

3

Tapiola Hall

8000

2,00



Tapiola



yes

0

Rehearsal Room #1

4200

1,25



symp. Orch #1



yes

1

Kristiansand

3000

1,00



KSO

70

no

1

Kristiansand

3000

0,70



KSO

70

yes

1

Bergen

3000

1,40



BPO

90

no

4

Oslo, Lindemann

4500

1,7



NMH

70

yes

4

Oslo, Lindemann

4500

1,7



KORK

70

no

4

Oslo, Lindemann

4500

1,4



KORK

70

yes

4

Oslo, Aula

4150

1,90



misc

medium

yes

4

Oslo, NRK

3700

1,30



KORK

70

no

4

Oslo, NRK

3700

1,80



KORK

70

no

5

cph opera1

4400

1,30



cph opera orch.



yes

5

cph opera2

2300

0,80



cph opera orch.



no

5

Frichs

5000

1,4



resident so



no

5

Lumbye

4600

1,8



Tivoli symph.orch



no

5

Queens

4500

1,9



sinfonietta

40

yes

5,7

BBC Studio 1 Cardiff

3800

1,1



BBC Wales nat'l SO

90

no

5,7

BBC Hoddinott studios

8700

1,8



BBC Wales nat'l SO

90

yes

5

BBC studio 7 Manchester

8300

1,8



-

90

no

5

BBC Salford Quays

9700

1,8



-

90

yes

5

BBC Maida Vale

6200

1,5



BBC Symphony

90

no

5

Penderecki

7700

2,3



small symphony

50

yes

6

NedPhO Koepel

12000

1,9



Netherland Philharmonic Orchestra

90

yes

6

Grosse Sendesaal NDR Hannover,

12000

1,9



Radiophilharmonie NDR

90

yes

6

Orchesterprobezentrum Stolbergerstrasse, Köln, before renovation

5100

1,9



Gürzenich Orchester

90

no

6

Orchesterprobezentrum Stolbergerstrasse, Köln, after renovation

5100

1,3



Gürzenich Orchester

90

yes

6

Kranenburgweg Den Haag

4050

1,3

3.9s at 63Hz

Het Residentiorchest

90

no

8

Crowe1

8400

1,87

0,86

Crowe1

75-95

yes

8

Crowe2

2230

1,63

0,91

Crowe2

75-95

yes

8

Crowe3

4518

1,2

1,05

Crowe3

75-95

yes

8

Crowe4

3200

1,6

1,0

Crowe4

75-95

yes

8

Crowe5

5150

1,47

1,14

Crowe5

75-95

no

8

Crowe6

5760

1,35

1,2

Crowe6

75-95

yes

9

Ufa City, Bashkortostan, Russia

2750

1,4

1,0

National Symphony orchestra of the Republic of Bashkortostan

90

yes

5,10

Konzerthaus, Berlin

2400

1,0



-

90

yes

5,10

Neues Gewandhaus, Leipzig

4200

1,9



Gewandhaus

90

no

11

 Gran Teatre del Liceu, Barcelona

 1748

 1,85

0,9

 Gran Teatre del Liceu Symphony Orch.

 76

 yes



Sources

0

Anonymous

1

Brekke & Strand

2

Adelman-Larsen

3

Akukon

4

Halmrast

5

Gade, Hong Kong 2012

6

Leutenbach, ISRA-2016

7

Knowles/Crowe, IOA 2010

8

Crowe

9

Livshits

10

Tennhart, Acustica 1995

11

Arau

Relevant links:

Music Room Acoustics an AKUTEK article

Reverberation distance - is it a critical property in ensemble rehearsal room acoustics?  an AKUTEK article

Simulations and subjective rating of acoustic conditions in a symphony orchestra - a case study, by M Skålevik 29.08.2018

Presentation at IOA Hamburg 2018 http://www.akutek.info/Presentations/MS_IOA-Hamburg-2018_pres.pdf

Restrictions on V-T combinations related to ensemble size (Power Point): http://www.akutek.info/Presentations/MS_ensemble_V-T_pres.pdf

Consistency in music room acoustics, (paper) (presentation at Forum Acusticum 08.09.2014)

The important level balance between Self ,Other and Reverberant Sound:  Self, Others and Reverb (paper) presentation;

Rehearsal room acoustics for the orchestra musician (full paper) Preprint of BNAM 2014 paper  (presentation) 03.06.2014

Rooms for music – Acoustical needs and requirements , by JH Rindel 15.06.2012

Music Room Acoustics - Critical parameters   by M Skålevik 23.04.2012



This article is a living research article, to be continued and updated.

First published  01.06.2019, latest change 12.07.2019
